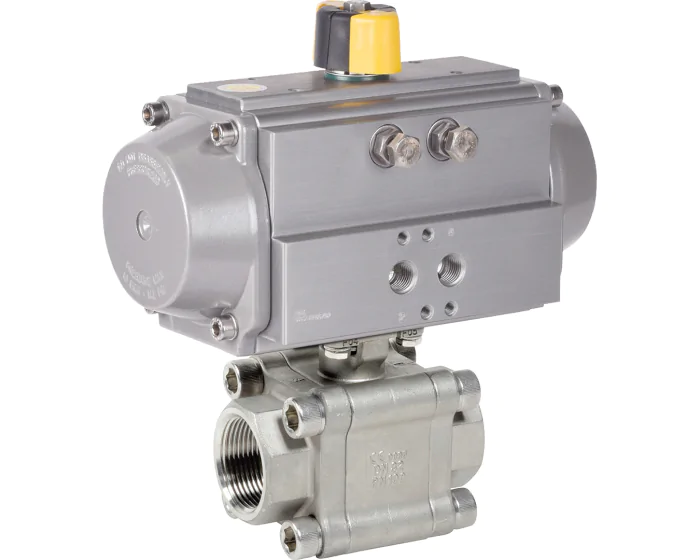

The 703 XS series 3-piece body ball valve has a CF8M (1.4408) stainless steel body and ball and PTFE/glass seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 137 bar, TS: 180°C.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 75.0 |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 220 |
| TS min (°C) | -30 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' BSP FF Double acting | 271372017006R | S1001553 |
€205.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Spring return Flanged PN40 | 271372017106R | S1001554 |
€252.47
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF Double acting | 271373017006R | S1001555 |
€217.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' BSP FF Spring return | 271373017106R | S1001556 |
€252.47
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF Double acting | 271374017006R | S1001557 |
€246.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' BSP FF Spring return | 271374017107R | S1001558 |
€297.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF Double acting | 271375017007R | S1001559 |
€308.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 BSP FF Spring return | 271375017109R | S1001560 |
€436.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF Double acting | 271376017008R | S1001561 |
€395.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 BSP FF Spring return | 271376017109R | S1001562 |
€483.07
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF Double acting | 271377017009R | S1001563 |
€571.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' BSP FF Spring return | 271377017110R | S1001564 |
€689.51
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Double acting Welding BW | 271382017006R | S1001565 |
€205.80
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN15 - 1/2'' Spring return Welding BW | 271382017106R | S1001566 |
€252.47
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Double acting Welding BW | 271383017006R | S1001567 |
€217.46
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN20 - 3/4'' Spring return Welding BW | 271383017106R | S1001568 |
€252.47
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Double acting Welding BW | 271384017006R | S1001569 |
€246.11
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN25 - 1'' Spring return Welding BW | 271384017107R | S1001570 |
€297.01
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Double acting Welding BW | 271385017007R | S1001571 |
€308.89
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN32 - 1''1/4 Spring return Welding BW | 271385017109R | S1001572 |
€436.64
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Double acting Welding BW | 271386017008R | S1001573 |
€395.27
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN40 - 1''1/2 Spring return Welding BW | 271386017109R | S1001574 |
€483.07
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Double acting Welding BW | 271387017009R | S1001575 |
€571.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 3-piece body DN50 - 2'' Spring return Welding BW | 271387017110R | S1001576 |
€689.51
(excl. btw)
|
add to cart |
